Patented Technology

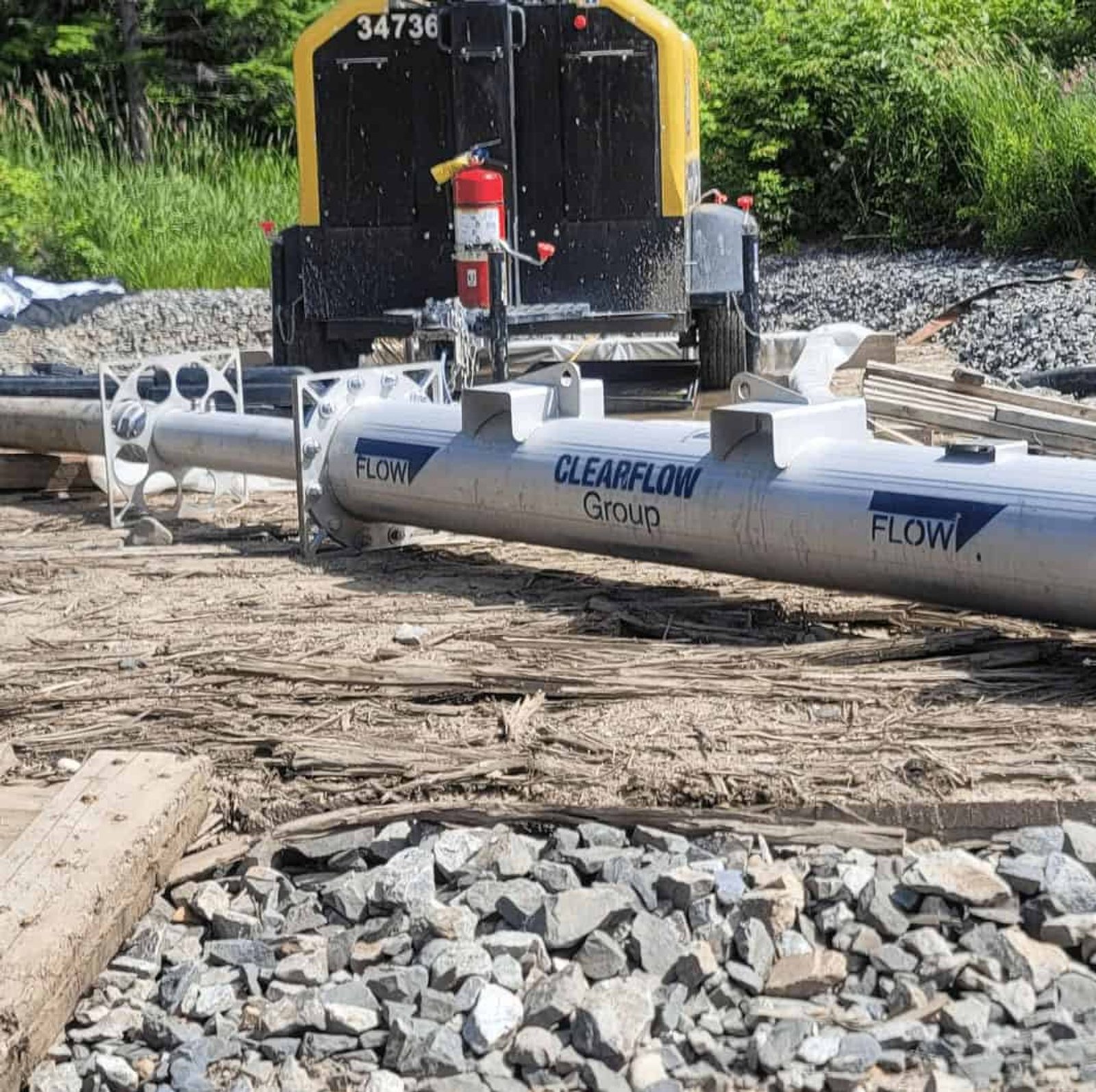

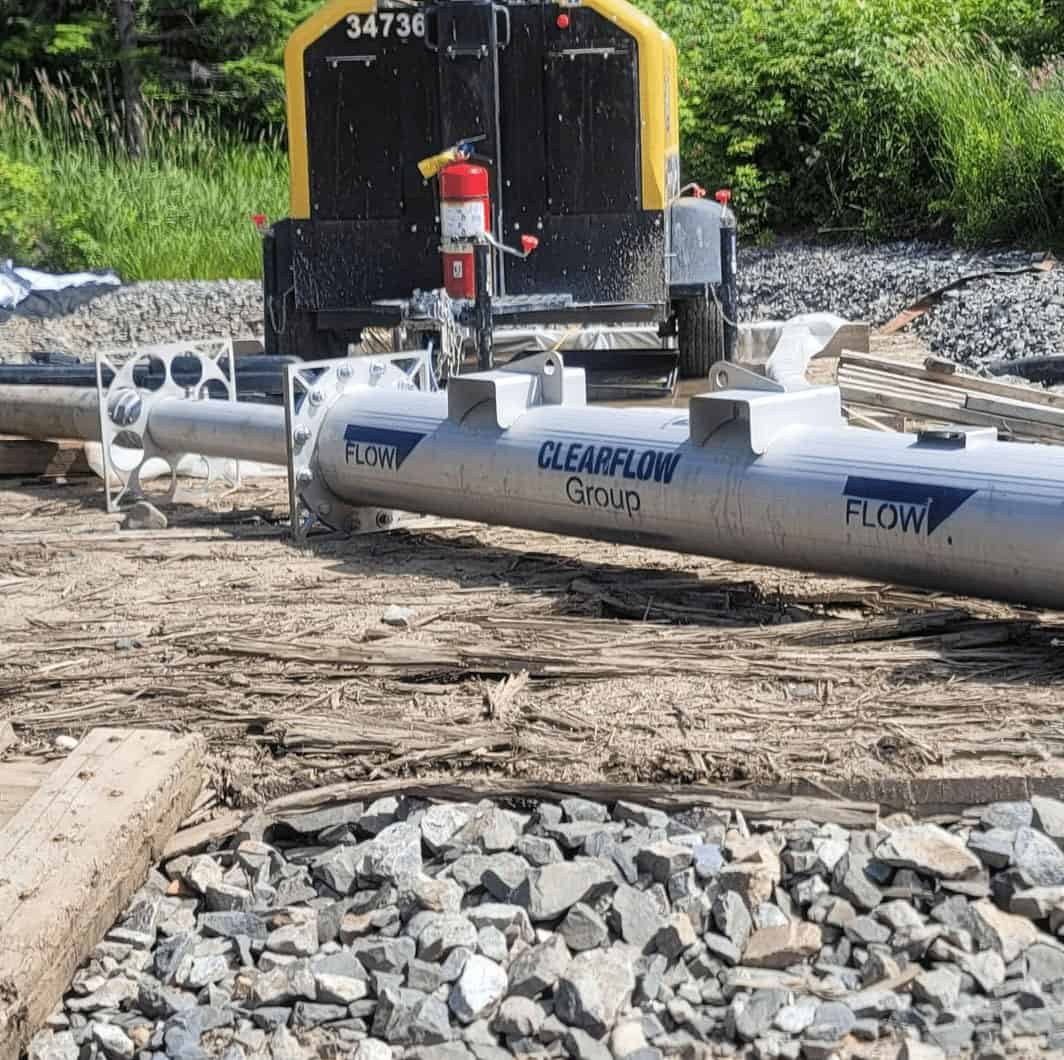

GFR 1000
High-flow reactor for large pond and channel dewatering.
- Optimum flow
- 500-750 GPM
- Max flow
- 1000 GPM
- Dimensions
- 137" × 16"
- Weight (empty)
- 500 lbs
- Connections
- 6" NPT
- Cartridges
- 6
- Product needed
- Gel Flocculant blocks
All products
GFR Water Treatment Systems
GFR Water Treatment Systems for Pond Dewatering
Making pond dewatering easy for our clients, one project at a time.
Patented Technology
Why GFR water treatment systems?
Making pond dewatering easy for our clients, one project at a time. Clearflow Gel Flocculants eliminate the need for high-priced traditional flocculation systems - install the gel block in situ to reduce TSS, metals, phosphorus, arsenic, and more. Pair with GFR reactors (GFR 1000 / GFR 300 / GFR 100 / GFR100-P) for higher flow rates in a smaller footprint, and finish with treated jute for slopes, channels, and polishing.
Clearflow mobile industrial water treatment systems give projects the best dewatering treatment solutions, reducing suspended solids and contaminants effortlessly.
Reduce treatment costs
Improve freshwater recovery
Cut GHG emissions
Achieve regulatory compliance
No new infrastructure required
Main benefits of using our systems
- Low maintenance & long-term reliability
- Wide range of dewatering / TSS treatment capabilities
- Designed for optimum treatment load <0.5% (5000 NTU); may be effective as high as 2.0% solids or 20,000 NTU
- 2-6-week product life
- Stainless steel construction
- Replaceable stainless steel cartridges
- Easily portable
- Zero carbon footprint
- Treat and pump at the same time
- Reduces metals, phosphorus, TSS, and other contaminants effortlessly
Models
GFR water treatment features
Patented Technology
GFR 300
Mid-flow reactor for typical site dewatering.
- Optimum flow
- 250-350 GPM
- Max flow
- 300 GPM
- Dimensions
- 71" × 16"
- Weight (empty)
- 350 lbs
- Connections
- 4" NPT
- Cartridges
- 3
- Product needed
- Gel Flocculant blocks
Patented Technology

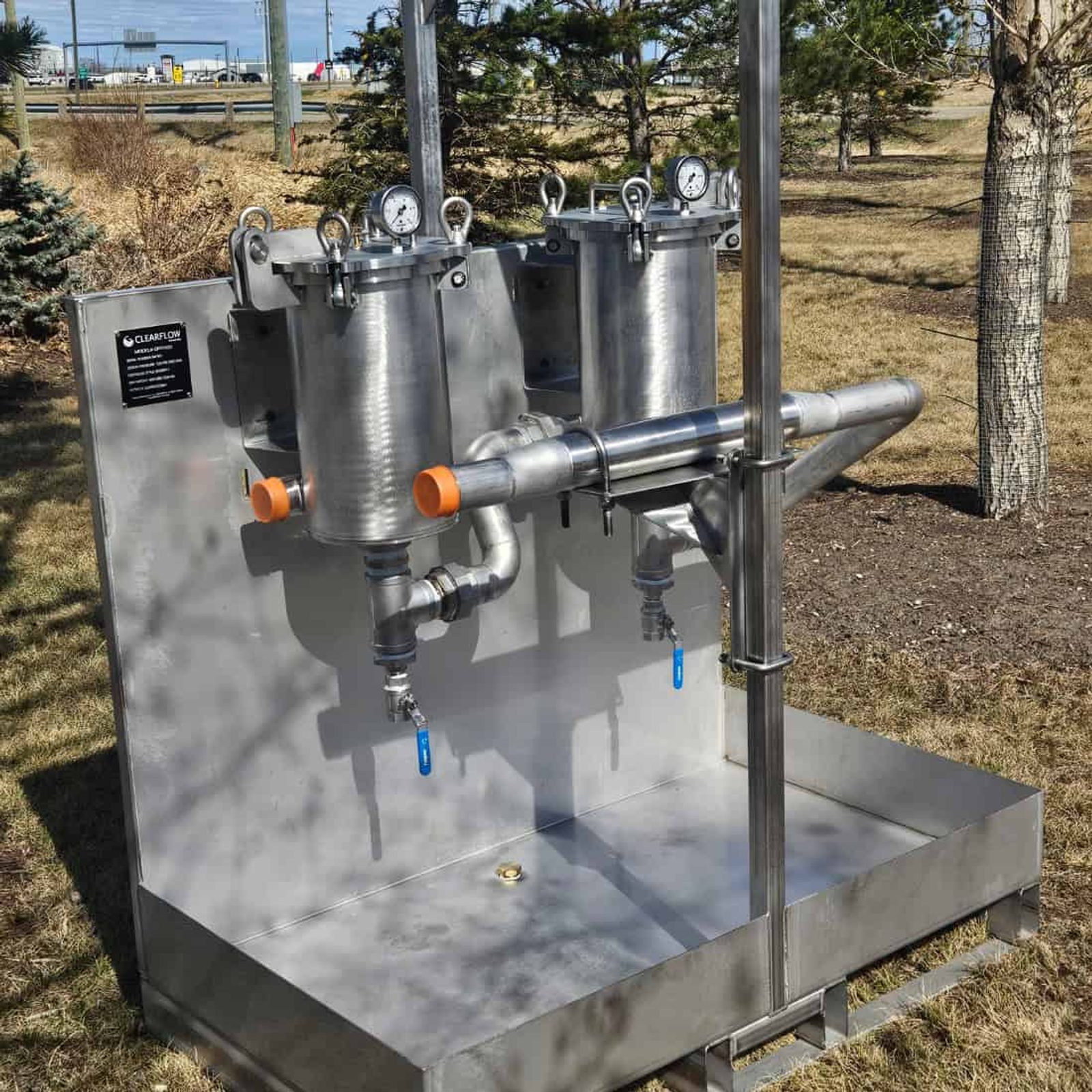

GFR 100
Compact reactor for lower-flow applications.
- Optimum flow
- 100-150 GPM
- Max flow
- 100 GPM
- Dimensions
- 24" × 48" × 48"
- Weight (empty)
- 500 lbs
- Connections
- 2" NPT
- Cartridges
- 2
- Product needed
- Gel Flocculant blocks
Patented Technology

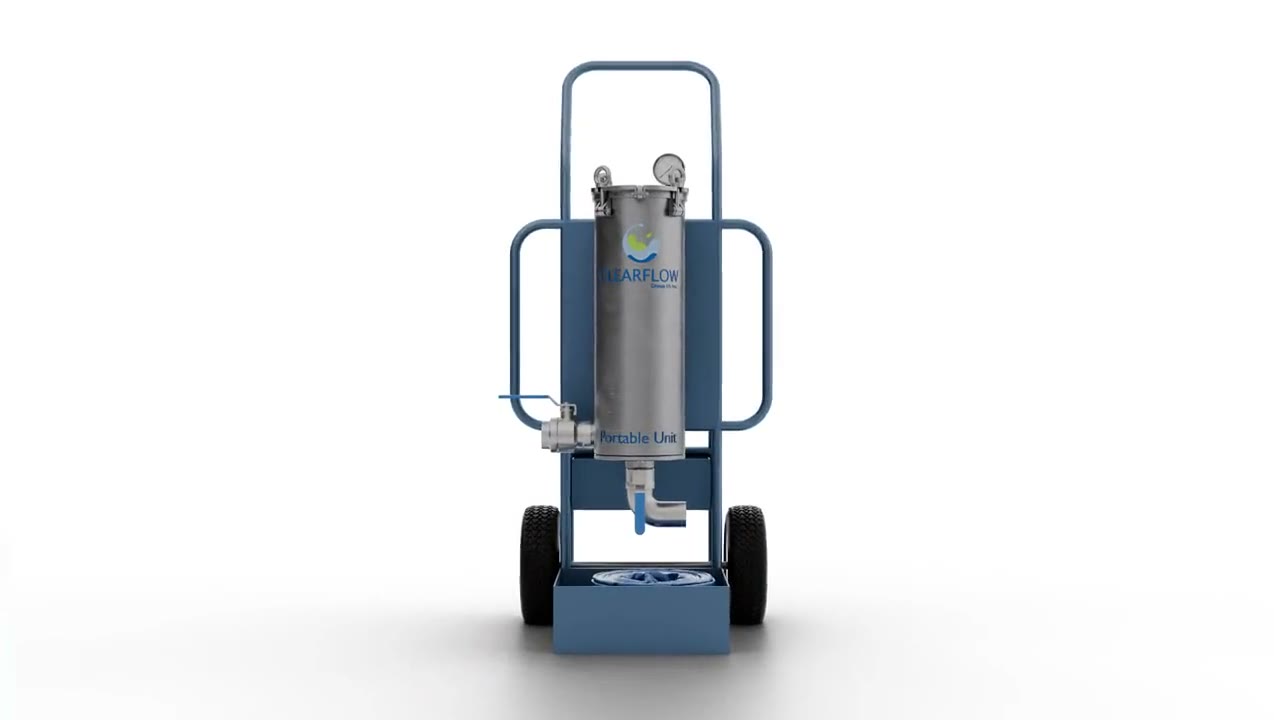

Portable unit
GFR100-P
Cart-mounted portable reactor for rapid-deploy dewatering. No dosing pumps, chemical totes, or specialized staff.
- Under 2 minute connect
- Off-road wheels
- Camlock fittings
- Static mixer included
- Optimum flow
- 75-100 GPM (4.7-6.3 L/s)
- Min flow
- 51 GPM (3.2 L/s)
- Max flow
- 149 GPM (9.4 L/s)
- Dimensions
- 27" × 27" × 55" (69 × 69 × 140 cm)
- Weight (empty)
- 77 lbs (35 kg)
- Connections
- 2" NPT
- Cartridges
- 2
- Blocks per cartridge
- 2
- Product needed
- Gel Flocculant blocks
Clearflow water treatment equipment accessories
Silt collection mats, treated jute for filtration, polishing curtains, and Ultrabind.
Patented Technology
Gel Floc
Clearflow has eliminated the need for high-priced traditional flocculation systems with Gel Flocculants. Simply install the gel block in the GFR as a replaceable cartridge. Reduce TSS, metals, phosphorus, arsenic and more.
Learn more
Patented Technology
Treated Jute
Fully biodegradable erosion inhibitor on slopes. Screens fine particulates from entering streams, collects particles already in the stream, and polishes fines still in suspension after primary treatment.
Learn more
