01
Clearflow Gel Flocculant Blocks
Award-winning, self-dosing gel technology engineered to passively target and bind suspended solids, heavy metals, and nutrients.
Hardware & deployment systems
ARC System - Adaptive Reactor & Clarification
A new family of compact, versatile, high-performance clarifiers. High-capacity, mobile water treatment engineered to deliver robust solids removal at the point of need - scaled by capacity, not complexity.
System overview

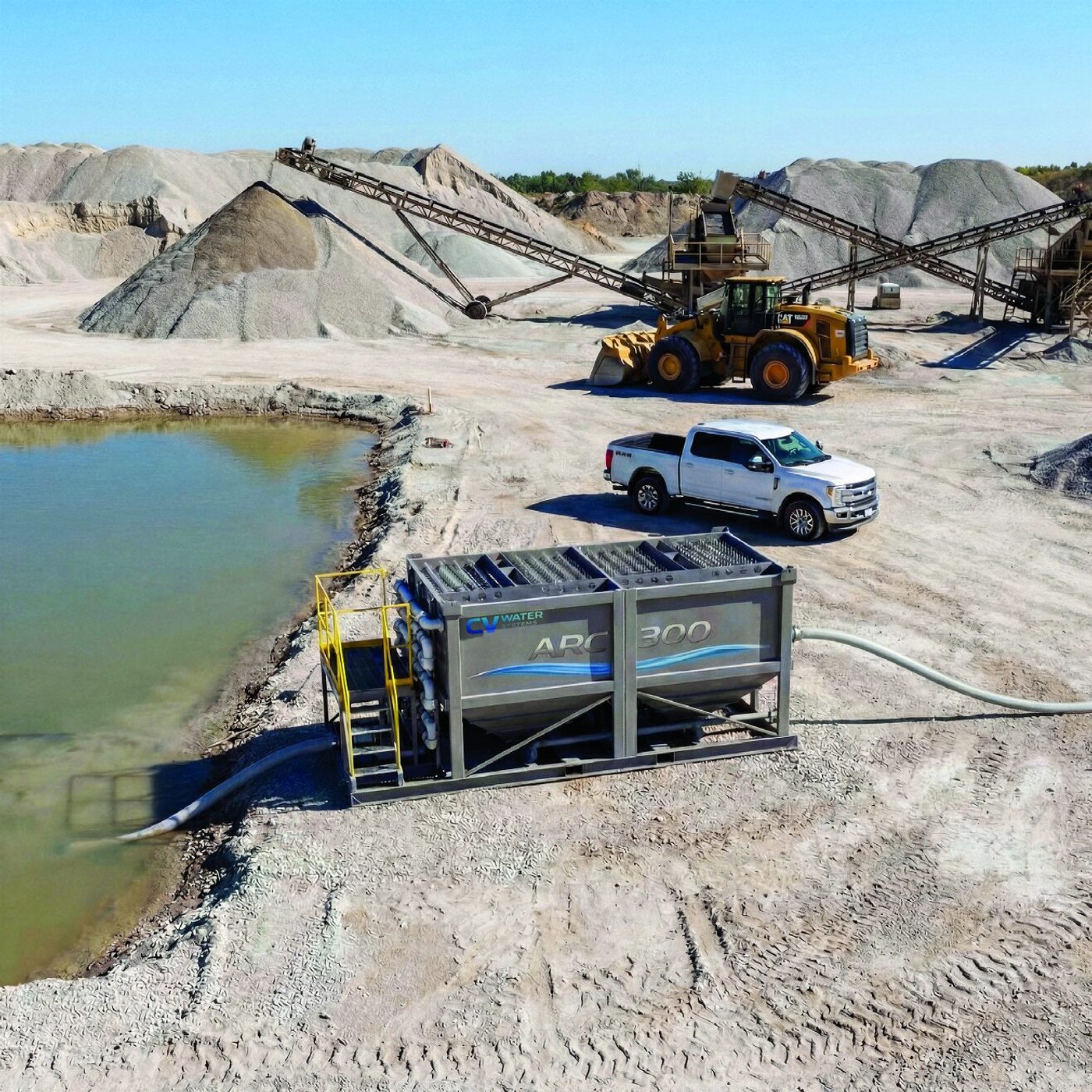

Clarification at the pond edge
The ARC family pairs Clearflow's patented Gel Flocculant technology with an optimized clarification chamber to drive rapid settling and consistent self-dosing under variable flows. Whether treating construction runoff, industrial process water, or mine site discharge, it produces clear, reuse-ready effluent and a concentrated sludge stream that simplifies on-site handling.
- Settling 3 to 5 times faster than traditional methods
- Consistent self-dosing under variable flows
- Four models from 150 to 1,000 GPM nominal flow
Patented Technology
Core technologies
Proven technologies, combined
02
Clearflow Gel Flocculant Reactors
Engineered flow-through vessels designed for the passive, self-dosing release of the gel chemistry.
03
Integrated ARC Core
High-density lamella clarification plates, precisely angled to maximize surface area and accelerate settling speeds 3 to 5 times faster than traditional methods.
04
Integrated Solids Management
Specially designed dual sludge hoppers that efficiently consolidate captured solids for rapid, hassle-free pump-out and disposal.
System specifications
Four models, one platform
| Specification | ARC 150 | ARC 300 | ARC 600 | ARC 1000 |
|---|---|---|---|---|
| Nominal flow rate (GPM / m3/h) | 150 / 34 | 300 / 68 | 600 / 136 | 1000 / 227 |
| Flow rate range (GPM / m3/h) | 75-225 / 17-51 | 150-450 / 34-102 | 300-900 / 68-204 | 500-1500 / 113-340 |
| Settling area (ft2 / m2) | 380 / 35 | 760 / 70 | 1520 / 140 | 2280 / 210 |
| Clarifier volume (gal / litres) | 2,250 / 8,500 | 4,500 / 17,000 | 9,000 / 34,000 | 13,500 / 51,000 |

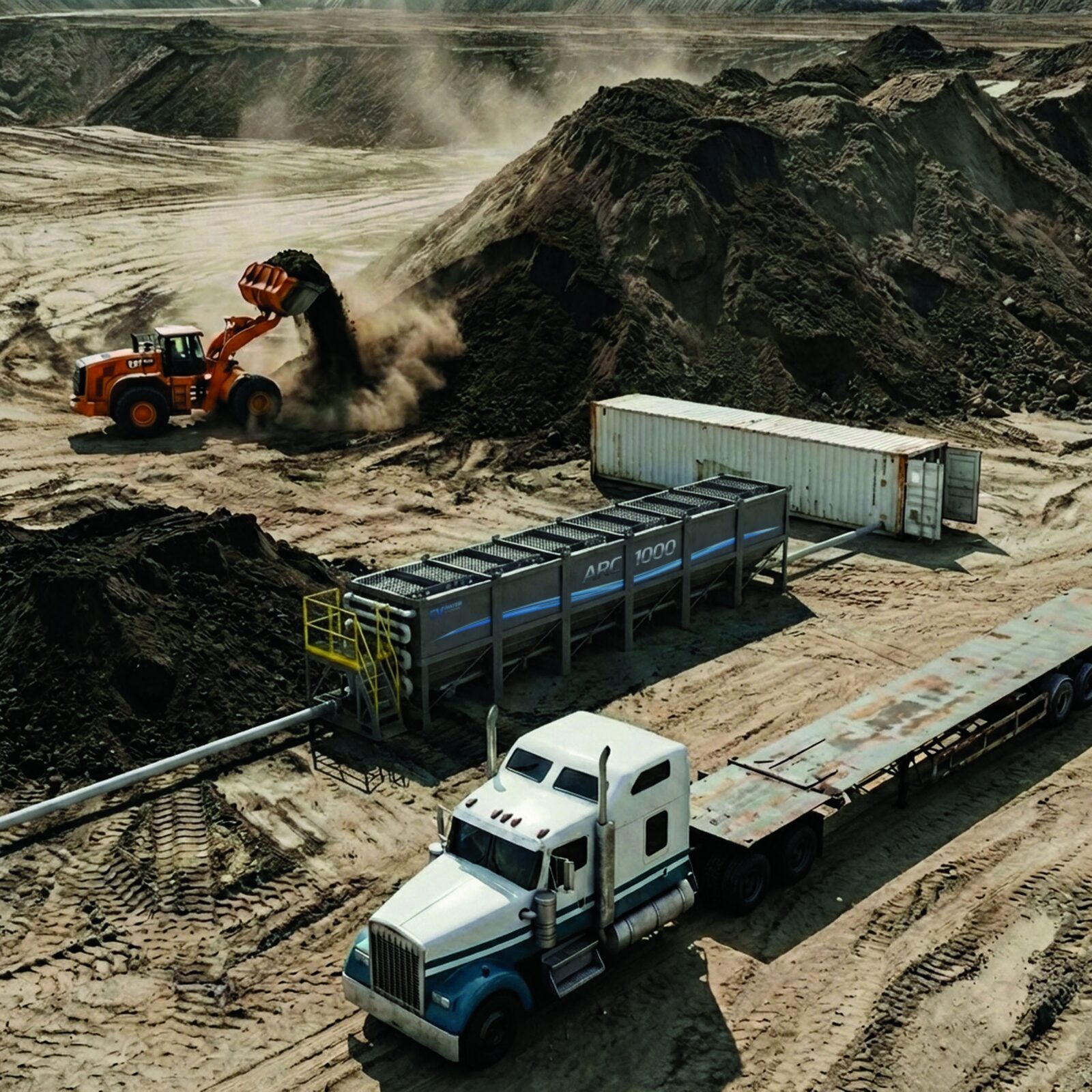

| Transport dimensions (ft / m) | 8x13 / 2.4x4.0 | 8x20 / 2.4x6.1 | 8x35 / 2.4x10.7 | 8x50 / 2.4x15.2 |
| Weight, empty (lbs / kg) | 4,950 / 2,250 | 9,900 / 4,500 | 22,000 / 10,000 | 33,000 / 14,000 |
| Piping size (in / mm) | 3 / 76.2 | 4 / 101.6 | 6 / 152.4 | 8 / 203.2 |
| Water inlet / outlet connection | 3" 150# flange | 4" 150# flange | 6" 150# flange | 8" 150# flange |
| Sludge outlet connection | 3" 150# flange | 3" 150# flange | 3" 150# flange | 4" 150# flange |
- Mounting: Custom skid
- Solids collection: Integrated sludge hopper / drain
- Settling media: Inclined ARC-Core plates
- Tank construction: Epoxy coated carbon steel
- Piping material: PVC
Ideal applications
- Mining & mineral processing
- Construction & aggregate
- High-volume stormwater & runoff
- High TSS wastewater
Optional accessories
- Solids tank & solids pump
- NTU meter on discharge
- pH adjustment dosing
- Liquid/gas injection
“The ARC system combines proven technologies to deliver truly superior results. It lowered my operational costs and saved lots of footprint on my site.”
Patented Technology
Ready to upgrade your clarification?
Tell us about your flows and solids loading, and our team will size the right ARC model for your site.
